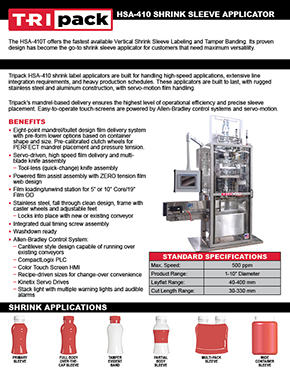

Standard Specifications

Standard Power 480 Volt, 3 Phase, 20 Amp Product Range 1” – 10” Diameter
Lay Flat Range 40mm – 400mm Cut Length Range 30mm – 330mm
Max Speed 500 ppm Max Film Roll OD 19”
Film Core ID Sizes 5” or 10” Film Gauge Tolerance 35-70 microns (1.38-2.75 mil)
Lay Flat Tolerance -0mm / +1mm Coefficient of Friction ≤ 0.25
Material Types PET, PETG, OPS, PLA, PVC

*Other power options available, applicator stand is required if cut length exceeds 200mm and/or conveyor height exceeds 40”, max speed is based on 50mm cut length

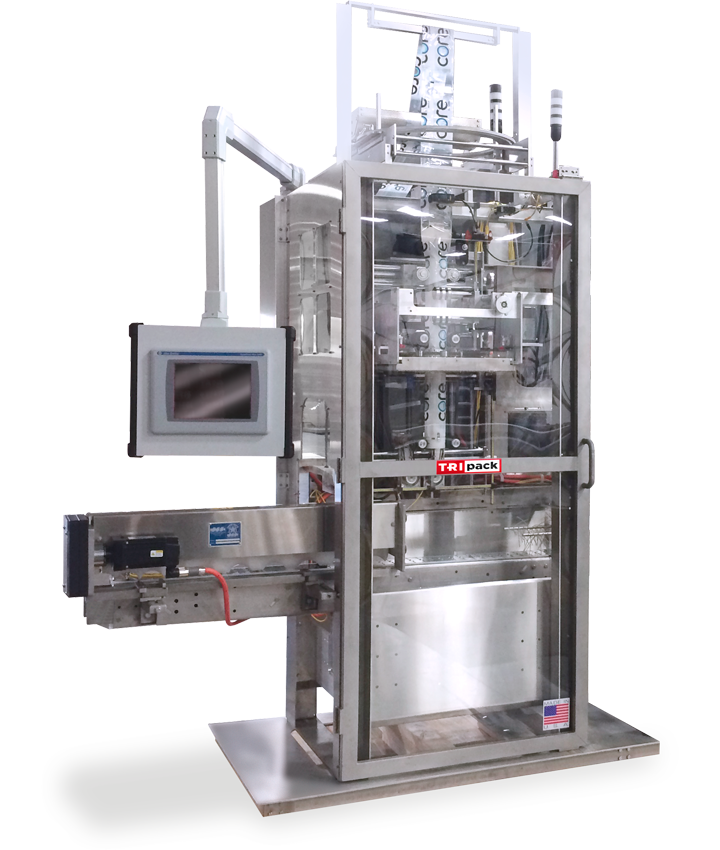

Benefits

  • Washdown Ready
  • Stainless steel, fall through clean design, frame with caster wheels and adjustable feet.
  • Cantilever style design capable of running over existing conveyors
  • Reliable Performance with Servos
  • Eight-point mandrel/bullet design film delivery system with pre-form lower options based on container shape and size. Pre-calibrated clutch wheels for PERFECT mandrel placement and pressure tension.
  • Servo-driven, high speed film delivery and multi-blade knife assembly
  • Powered film assist assembly with ZERO tension film web design
  • Integrated dual timing screw assembly
