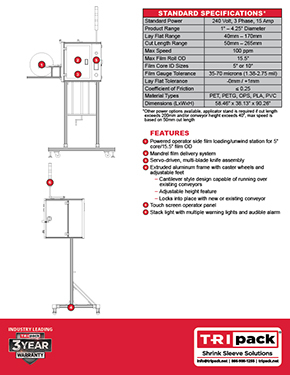

Standard Specifications

Standard Power 240 Volt, 3 Phase, 15 Amp Product Range 1” – 4.25” Diameter
Lay Flat Range 40mm – 170mm Cut Length Range 50mm – 265mm
Max Speed 100 ppm Max Film Roll OD 15.5”
Film Core ID Sizes 5” or 10” Film Gauge Tolerance 35-70 microns (1.38-2.75 mil)
Lay Flat Tolerance -0mm / +1mm Coefficient of Friction ≤ 0.25
Material Types PET, PETG, OPS, PLA, PVC Dimensions (LxWxH) 58.46” x 38.13” x 90.26”

*Other power options available, applicator stand is required if cut length exceeds 200mm and/or conveyor height exceeds 40”, max speed is based on 50mm cut length

Benefits

  • Reliable and Consistent Performance
  • Easy to Install, Use, and Maintain
  • Simple Design Allows for Quick Film Change and Maximum Uptime
  • Fully Enclosed with Interlocking Guarding for Safe Operation
  • Mobile Frame with Casters and Adjustable Feet – Easy to Move In/Out of Production Line

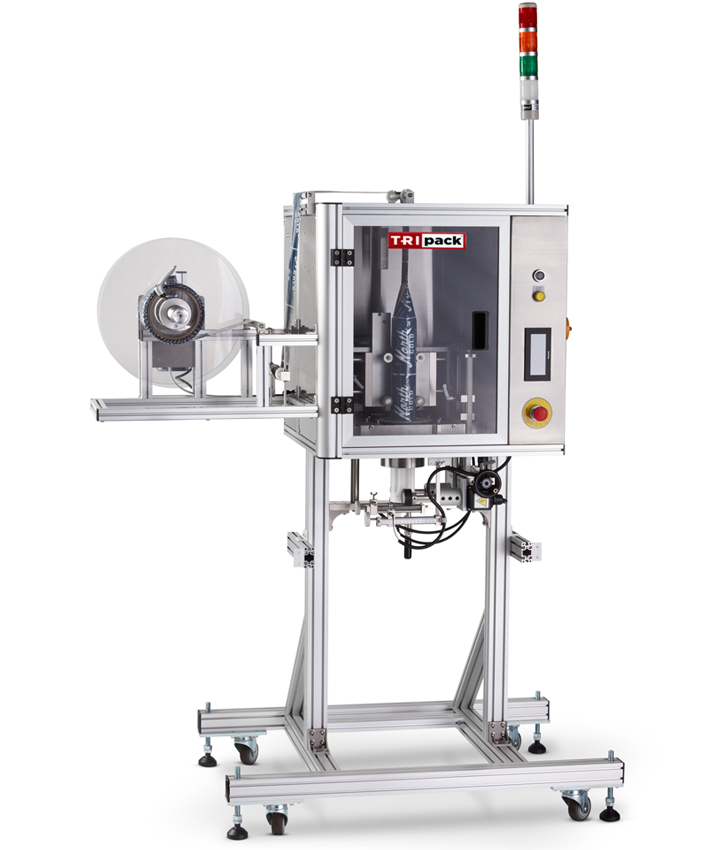

Like all Tripack Applicators, the LSA-160 has full complement of options, including customized product handling solutions, perforation devices, and shrink tunnels. Buy the applicator or integrate it into a full Tripack system!
